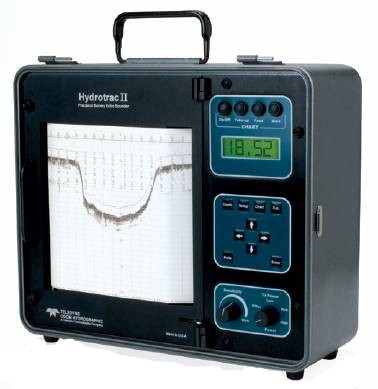

Hydrotrac II is special for the use of small ships to work under harsh environment and inflatable boats, for example in the design area. It is compact, portable and completely waterproof in operation. Hydrotrac II combined with thermal printer and Odom ECHOTRAC sounder superior characteristics, excellent performance price ratio.

The main index

200 KHz (standard)

24, 28,33, 40, 100, 120, 210 and 340 kHz (optional)

◆ output power

600 W

600 W

◆ sounding

High frequency - 20 cm to 300 m

The low frequency of 50 cm to 600 m

◆ accuracy

200kHz--1cm ± 0.1% depth value (after correction of sound velocity)

33 kHz--10cm ± 0.1% depth value (after correction of sound velocity)

◆ resolution

0.01M

◆ power

11-28V DC

◆ port

The 2 (RS232 or RS422)

1 Ethernet interface: • 8 bit 1600 /ping sampling data;

◆ weight: 10.2kg
